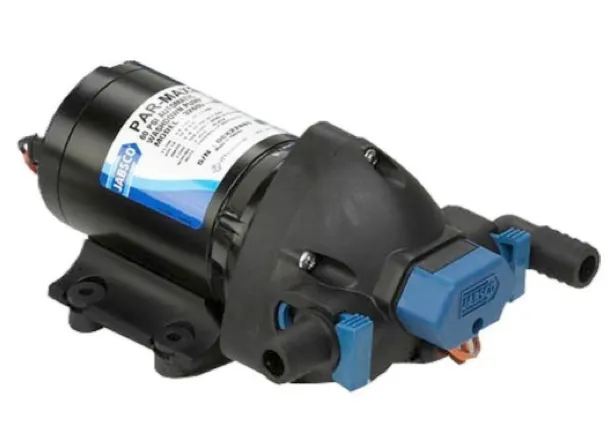

Smallest of the Jabsco Pressure Pumps ideal for 2 or 3 outlets.
Specification
- Connections: for 13mm (½”) bore hose or Hep20 push-fit connectors CW193
- Dimensions: 230mm long, 152mm wide, 110mm high
- Fuse Size: 5(amp)
- Maximum Current: 2(amps)
- Output: 7 litres/minute (1.5 gallons/minute) open flow
- PRESSURE SWITCH - cuts in at 1.0bar (15psi) - cuts out at 1.7bar (25psi)
- Efficient, high-flow, self-priming pump serving 2 or more outlets
- Multi-diaphragm design self primes to 1.8m vertical lift, can run dry without damage
- Supplied with snap-in ports for hose or Hep20 connectors
- Quiet running
- Motor protected by automatic thermal overload cut-out
- Includes bypass feature to provide smooth, quiet flow. No need for accumulator tank
- Packaged Dimensions: L:17.00 x H:11.00 x W:34.00cm
- Actual Weight: 1.60 Kg (Approx. 2.10 Kg packed)
